CODE NO. : TORO-BOX-75X75P-4M-L125
Toroidal Current Transformers
-TORO-BOX-75X75P-4M-L125
Toroidal Current Transformers
-TORO-BOX-75X75P-4M-L125

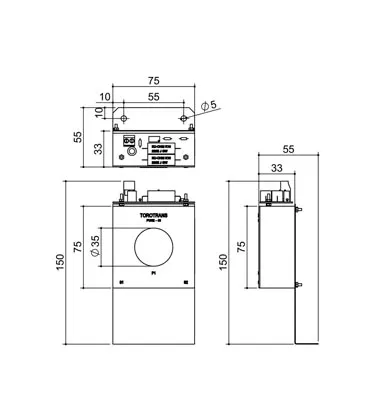

All dimensions are in mm.
Schematic
Specification :
| Primary Current Range | : | 50 - 600 Amp |
| Secondary Current | : | 0.1 or 0.2 Amp |
| VA Rating | : | 1 VA |
| Accuracy Class | : | 1 |
| Frequency | : | 50 / 60 Hz. |
| Secondary Voltage | : | 9.90 - 10.10 Volt @100 |
| H.V. Test | : | Between Primary to secondary 2 KV. |
| Winding | : | Class F |
| Insulation | : | Class B |
| Operating Temperature | : | -15 to 70 deg. Celsius |
| Termination | : | Fixed Nut-Bolt / U Type Lug S1 - start, S2 - End. |
| Mounting | : | As per above drawing |
Features / Applications:
- Current transformers are used for electrical measuring instruments and / or electrical protective devices.
- They are very useful in high power circuits where the current is large.
Note :
- We also manufacture nonstandard current transformer to meet the customers specification.
- Due to constant attempt to improve the design and due to change in the quality of material available, the figures given above are for general guidance only and are subject to confirmation.
