We are Manufacturer, Supplier, Exporter of Toroidal Transformers, Toroidal Current Transformers - TORO-TW-C and our set up is situated in Pune, Maharashtra, India.
CODE NO. : TORO-TW-C

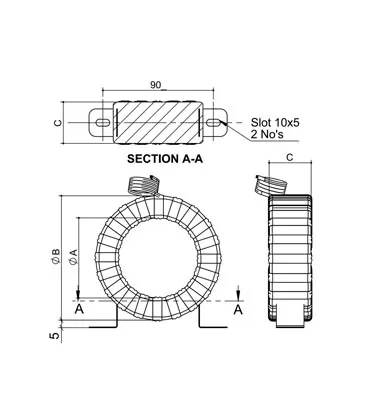

All dimensions are in mm.Mechanical Dimensions
Toroidal Current Transformers - TORO-TW-C
Schematic| RATIO IN AMP | BURDEN VA | CLASS | APPROXIMATE DIMENSION IN MM | ||
| A | B | C | |||
| 200/5 | 5 |
1 | 50 | 95 | 35 |
| 250/5 | 5 |
1 | 50 | 95 | 35 |
| 300/5 | 10 |
1 | 50 | 95 | 35 |
| 400/5 | 10 |
1 | 60 | 105 | 30 |
| 500/5 | 15 |
1 | 60 | 105 | 30 |
| 600/5 | 15 |
1 | 60 | 105 | 30 |
| 800/5 | 15 |
1 | 85 | 125 | 30 |
| 1000/5 | 15 |
1 | 85 | 125 | 30 |
| 1200/5 | 15 |
1 | 110 | 145 | 30 |
| 1500/5 | 15 |
1 | 120 | 155 | 30 |
| 1600/5 | 15 |
1 | 120 | 155 | 30 |
| 2000/5 | 15 |
1 | 120 | 155 | 30 |
| 2400/5 | 15 |
1 | 135 | 170 | 30 |
| 2500/5 | 15 |
1 | 135 | 170 | 30 |
| 3000/5 | 15 |
1 | 135 | 170 | 30 |
Specification :
| Primary Current Range | : |
200 - 3000 Amp |
| Secondary Current | : |
1 or 5 Amp |
| VA Rating | : |
5 VA to 15 VA |
| Accuracy Class | : |
As per Client |
| Frequency | : |
50 / 60 Hz. |
| H.V. Test | : |
Between Primary to secondary 2 KV. |
| Winding | : |
Class F |
| Insulation | : |
Class B |
| Operating Temperature | : |
-15 to 70 deg. Celsius |
| Termination | : |
Flying Lead Red-start, Black - End. |
| Mounting | : |
Without or with C type Clamp with flying leads |
Features / Applications :
- Current transformers are used for electrical measuring instruments and / or electrical protective devices.
- They are very useful in high power circuits where the current is large.
- Current transformers are subdivided into two main categories:
- TYPE : Current Transformers are normally categorized as Ring / Bar type and Wound Primary Ring / Bar type current transformer : A current transformer where primary winding is provided by 'the user.
- Current Transformers are wound on Toroidal cores which virtually eliminates error due to leakage flux. Adjusting the number of secondary turns may compensate for some errors.
MEASURING CURRENT TRANSFORMERS
These transformers are used in measuring and indicating current, that is to reduce the line current to a value which is suitable for standard measuring instruments, relays etc.
PROTECTIVE CURRENT TRANSFORMERS
These transformers are used for over current and undercurrent relaying for power circuit protection
Wound primary current transformer : A current transformer having a primary winding of more than one full turn wound on core.
Note :
- We also manufacture nonstandard current transformer to meet the customers specification.
- Due to constant attempt to improve the design and due to change in the quality of material available, the figures given above are for general guidance only and are subject to confirmation.
